Manufacturing Process

Drawing and Simulation

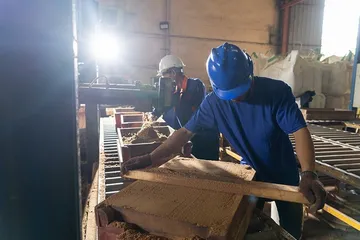

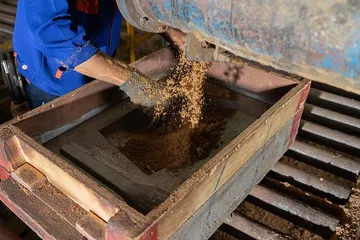

Moulding Making

Moulding Line Information

Sand Mixture

  • 20T 1 Machine
  • > 1 meter in length

Pattern

  • Wood (Regular Quantity)
  • Aluminium (High Quantity)
  • Foam (Few Quantity)

Frame type

  • Steel Frame
  • Frameless

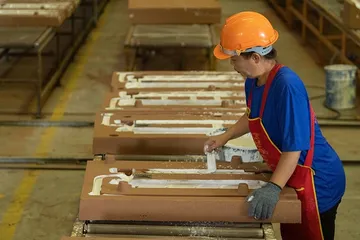

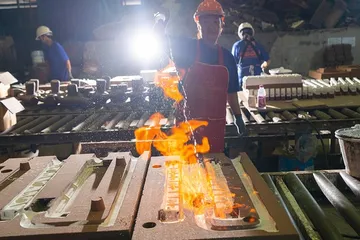

Mould Coating

Why Coating?

  • Clean and round grains
  • Consistent fineness and ability to form fine grains
  • Low thermal expansion coefficient and high spatial stability at increased temperatures
  • High melting point (2,100 - 2,300 C)
  • High thermal conductivity
  • Chemical stability at high temperatures
  • Low wettability by molten metal

Metal Melting

Melting

Standard Material Specification

AISI-1020SCH-11 ScMnH-11 1.4878
AISI-4140SCH-13ScMnH-18FC200-250
AISI-4130 SCH-17 ScMnH-21 FC300-350
MIDI-61 SCH-211.4777 FCD400-450
SKD-11 SCH-22 SCH-22 FCD500-600
AISI-420SUS-316 1.4837 FCD700-800
"Material Composition can be customized depend on customer's application"
Melting1544681523793

Melting21570781860435

Melting31521705726482

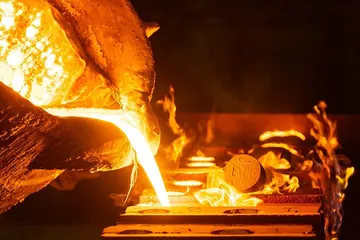

Metal Pouring

Pouring?

  • Pouring Time
  • Flow Rate
  • Temperature
  • Slag Remover

Grinding

Grinding

“Smoothen surface finish with our professional grinding team”

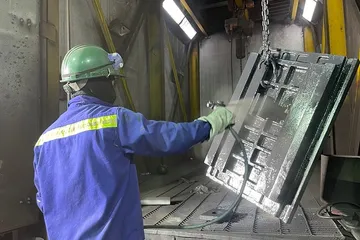

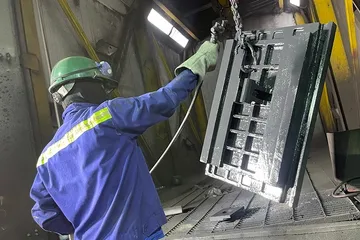

Painting

Painting

Every products that deliver to our customers are ensured with our PT quality control standard

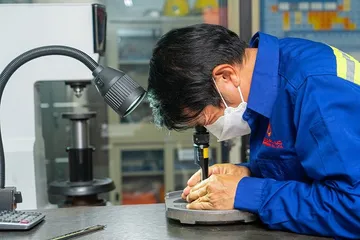

Quality Control

QualityControl1737828988454

QualityControl21610579889758

QualityControl3351147219876
